1. For YOXII560, Lmin=489 H1max=170 for diameter, of motor shaft≤φ95.
Lmin=529 H1max=210 for diameter, of motor shaft≥φ100.
2. When H1 and H2 are greater than listed H1max and H2max, L should be increased correspondingly.
3. TVA562, TVA650, TVA750, TVA866 are products licenced by Voith Turbo GmbH & Co.KG of Germany.

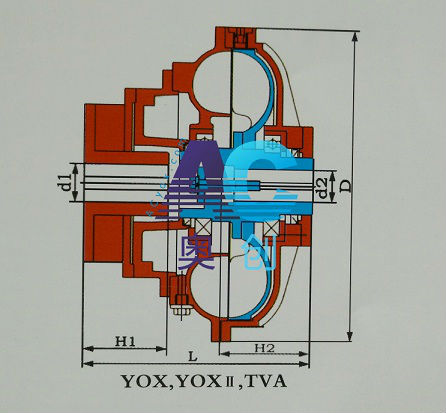

4. The screw inside shaft in figure is optional.
| 型號Type No. |
Lmin |
D | 輸入端Input side | 輸出端Output side | 充油量Oil filling(L) | 重量(不包括油)Weight w/o oil(kg) | 最高轉(zhuǎn)速M(fèi)ax.speed(r/min) |
過載系數(shù) Overload ratio |
|||
| d1max | H1max | d2max | H2max | max. | min. | ||||||
| YOX200 | 210 | Ø254 | Ø28 | 60 | Ø30 | 55 | 0.8 | 0.4 | 10 | 1500 | 2～2.5 |
| YOX220 | 190 | Ø272 | Ø28 | 60 | Ø30 | 55 | 1.28 | 0.64 | 12 | 1500 | 2～2.5 |
| YOX250 | 215 | Ø300 | Ø38 | 80 | Ø35 | 60 | 1.8 | 0.9 | 15 | 1500 | 2～2.5 |
| YOX280A | 246 | Ø345 | Ø38 | 80 | Ø40 | 100 | 2.8 | 1.4 | 18 | 1500 | 2～2.5 |
| YOX320 | 304 | Ø388 | Ø48 | 110 | Ø45 | 100 | 5.2 | 2.6 | 28 | 1500 | 2～2.5 |
| YOX340A | 278 | Ø390 | Ø48 | 110 | Ø45 | 110 | 5.8 | 2.9 | 25 | 1500 | 2～2.5 |
| YOX340B | 288 | Ø390 | Ø48 | 110 | 軸shaft Ø38 |
95 | 5.8 | 2.9 | 35 | 1500 | 2～2.5 |
| YOX360 | 310 | Ø420 | Ø55 | 110 | Ø55 | 110 | 7.1 | 3.55 | 49 | 1500 | 2～2.5 |
| YOX360A | 310 | Ø420 | Ø55 | 110 | 花鍵孔spline hole 42×2.5×16 | 7.1 | 3.55 | 49 | 1500 | 2～2.5 | |
| YOX380 | 320 | Ø450 | Ø60 | 140 | Ø60 | 140 | 8.4 | 4.2 | 58 | 1500 | 2～2.5 |
| YOX400 | 356 | Ø480 | Ø60 | 140 | Ø60 | 150 | 9.3 | 4.65 | 65 | 1500 | 2～2.5 |
| YOX420 | 368 | Ø495 | Ø60 | 140 | Ø60 | 160 | 12 | 6 | 70 | 1500 | 2～2.5 |
| YOX450 | 397 | Ø530 | Ø75 | 140 | Ø70 | 140 | 13 | 6.5 | 70 | 1500 | 2～2.5 |
| YOX500 | 411 | Ø590 | Ø85 | 170 | Ø85 | 145 | 19.2 | 9.6 | 105 | 1500 | 2～2.5 |
| YOX510 | 426 | Ø590 | Ø85 | 170 | Ø85 | 185 | 19 | 9.5 | 119 | 1500 | 2～2.5 |
| YOX560 | 459 | Ø650 | Ø90 | 170 | Ø100 | 180 | 27 | 13.5 | 140 | 1500 | 2～2.5 |
| TVA562(YOX562) | 449/471 | Ø634 | Ø100 | 170 | Ø110 | 170 | 30 | 15 | 131 | 1500 | 2～2.5 |
| YOX600 | 474 | Ø695 | Ø90 | 170 | Ø100 | 180 | 36 | 18 | 160 | 1500 | 2～2.5 |
| TVA650(YOX650) | 536 | Ø740 | Ø125 | 225 | Ø130 | 200 | 46 | 23 | 219 | 1500 | 2～2.5 |
| TVA750(YOX750) | 603 | Ø842 | Ø140 | 250 | Ø150 | 250 | 68 | 34 | 332 | 1500 | 2～2.5 |
| TVA866(YOX866) | 682 | Ø978 | Ø160 | 280 | Ø160 | 265 | 111 | 55.5 | 470 | 1500 | 2～2.5 |
| YOX1000 | 722 | Ø1125 | Ø160 | 250 | Ø160 | 280 | 144 | 72 | 600 | 1000 | 2～2.5 |
| YOX1150 | 830 | Ø1295 | Ø180 | 300 | Ø180 | 300 | 220 | 110 | 910 | 750 | 2～2.5 |
| YOX1320 | 953 | Ø1485 | Ø200 | 350 | Ø200 | 350 | 328 | 164 | 1440 | 750 | 2～2.5 |
| YOXII400 | 356 | Ø480 | Ø70 | 140 | Ø70 | 140 | 9.3 | 4.65 | 65 | 1500 | 2～2.5 |
| YOXII450 | 397 | Ø530 | Ø75 | 140 | Ø70 | 140 | 13 | 6.5 | 70 | 1500 | 2～2.5 |
| YOXII500 | 435 | Ø590 | Ø90 | 170 | Ø90 | 170 | 19.2 | 9.6 | 105 | 1500 | 2～2.5 |
| YOXII560 | 489/529 | Ø650 | Ø100 | 170/210 | Ø110 | 170 | 30 | 15 | 131 | 1500 | 2～2.5 |
| YOXII650 | 556 | Ø740 | Ø130 | 210 | Ø130 | 210 | 46 | 23 | 219 | 1500 | 2～2.5 |
| YOXII750 | 618 | Ø842 | Ø140 | 250 | Ø140 | 250 | 68 | 34 | 332 | 1500 | 2～2.5 |
